Overview

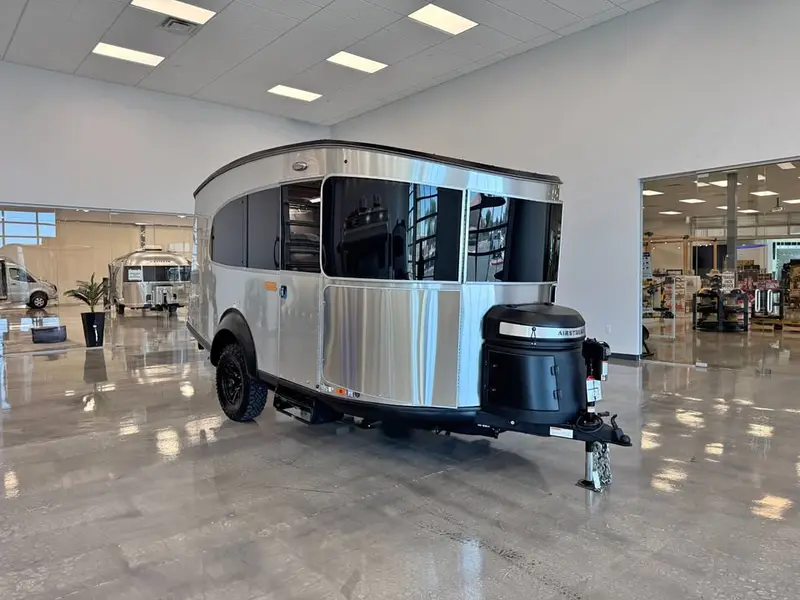

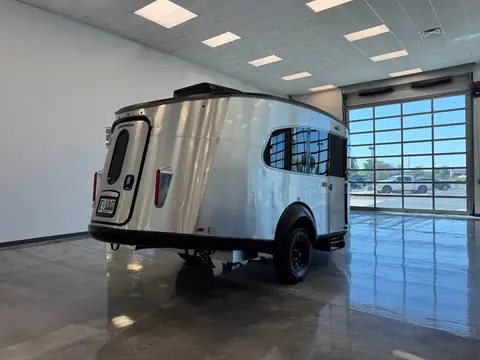

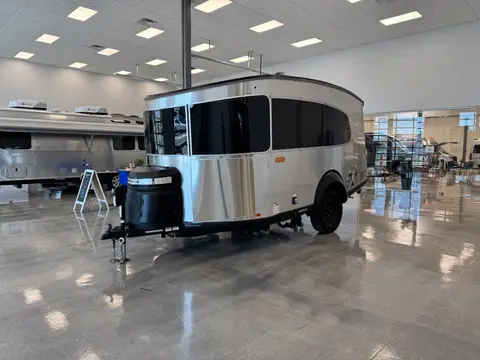

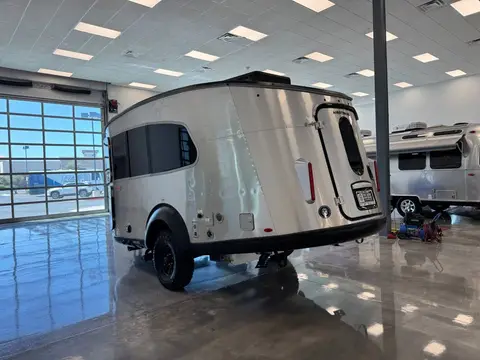

2027 AIRSTREAM BASECAMP 20X

Specifications

• Model: Basecamp 20X
• Year: 2027
• Color: Alpine Lake
• Wood: Pinball
• Serial Number: 1SMG4D015VJ210377
• Final Assembly Point: Jackson Center, OH

Size & Towing

• Exterior Length: 20 ft 2 in
• Exterior Width: 7 ft 9.5 in
• Exterior Height: 9 ft 5 in
• Interior Width: 7 ft 2.5 in
• Interior Height: 6 ft 7 in
• Unit Base Weight: 3,500 lbs
• Gross Vehicle Weight Rating (GVWR): 4,300 lbs
• Net Carrying Capacity (NCC): 800 lbs
• Hitch Ball Height: 20.75 in
• Hitch Weight: 535 lbs
• See Vehicle Sticker for Exact Weights

Highlights / Upgrades

• Torsion Axle
• Hand Painted Chassis
• Rooftop Solar Pre-Wire Port
• Multi-Stage 50 A Converter
• SmartPlug 30 Amp Shore Power Inlet with Cord
• 12V USB-A and USB-C Ports
• Fresh Water Tank: 23 gal
• Gray Water Tank: 28 gal
• Waste Tank: 21 gal
• LP: 2 – 20 lb Steel Tanks with Auto 2-stage Regulator
• Insulated and Heated Tanks (Forced Air and 12V Heat Pads)
• Bedroom Sleeping Configuration:
• Half Bed: 41 in x 78 in
• Complete Bed: 82 in x 78 in
• Seating: 26 in x 78 in
• Convertible Sleeping Space: 43 in x 78 in
• Sleeping Capacity: Up to 4
• 19,000 BTU Ducted Furnace
• Tankless On Demand LP Water Heater
• LP Gas Stove – 2 Burners
• 4.3 cu ft Refrigerator with Freezer
• Laminate Galley Top
• Flatware Organizer
• Stainless Steel Sink
• Galley Faucet
• Pop Up 110V USB and Standard Outlets
• 2 Movable Laminate Table Tops with Aluminum Pedestals
• 2 Additional Short Aluminum Pedestals for Bed Conversion
• Dedicated Table Storage
• Durable Stain Resistant Cushions
• Toilet
• Removable Hand Held Shower Head
• Roof Vent/Fan
• Towel Bar/Hooks
• Shower Caddy
• 8 Windows & Skylights
• Panoramic Windows with Blackout Curtains
• LED Interior Lighting
• Overhead Storage
• Coat and Key Hooks
• Fire Extinguisher / LP, Smoke and Carbon Monoxide Detectors
• Seamless Vinyl Flooring
• Multi-Speed Roof Exhaust Fan
• Handcrafted Laminated Interior Cabinetry
• Complete Aluminum Interior Walls and Ceiling
• Blackout Curtain(s)
• Tie Down D-Rings
• Aluminum L-Track Storage System (Floor)
• 2 Heavy Duty Stabilizer Jacks
• Fluorocarbon Treated UV Protected Aluminum Exterior
• Solar Front Window Protection
• Stainless Steel Front Stone Guard Protection
• Nev-R-Adjust Brakes
• Cast Aluminum LED Tail Lights
• Exterior Shower with Hot and Cold Water
• Dedicated Sewer Hose Storage
• Spare Tire – Full Size
• Stylized Aluminum Wheels
• Off Road Tires LT235/85R16E, Balanced
• Tempered Tinted Windows with Screened Rear Venting Windows
• Double Steel Entry Step
• Custom Aluminum Handcrafted Entry Door with Window

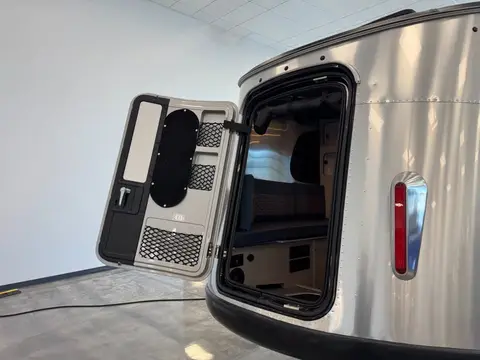

• Sliding Screen Entry Door and Removable Zippered Rear Screen
• Built in Winterization Kit
• Enclosed Aluminum Insulated Heated Underbelly
• Premium Environmentally Friendly Insulation
• Seamless Composite Flooring
• Semi-Monocoque Aluminum Superstructure
• Powered Hitch Jack with Light
• 3 in Lift Kit for Added Ground Clearance
